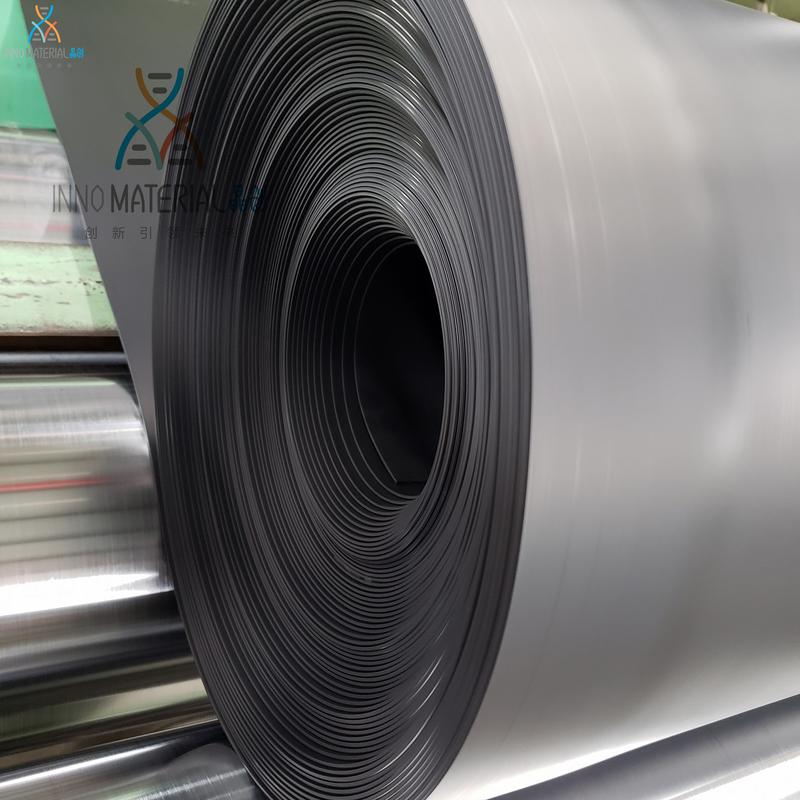

0.75mm GM 13 HDPE Geomembrane for Shrimp Pond

Geomembraneis the low permeable synthetic membrane liner and geotechnical engineering materials which are widely used for solid waste containment, mining and water containment applications.  smooth geomembrane HDPE liner is made of finest quality high density polyethylene HDPE with specially formulated, virgin polyethylene resin, combined with specified quantity carbon black, antioxidant, anti-aging agent and UV resistance components, which makes our smooth geomembrane HDPE liner with excellent resistance to UV radiation and is suitable for exposed conditions.Geomembrane is the low permeable synthetic membrane liner and geotechnical engineering materials which are widely used for solid waste containment, mining and water containment applications.  smooth geomembrane HDPE liner is made of finest quality high density polyethylene HDPE with specially formulated, virgin polyethylene resin, combined with specified quantity carbon black, antioxidant, anti-aging agent and UV resistance components, which makes our smooth geomembrane HDPE liner with excellent resistance to UV radiation and is suitable for exposed conditions.
Availability:
Quantity:
  • 0.2-2.5mm

  • INNO

  • 3920109090

HDPE Geomembrane Technical Parameter (GRI GM13 ASTM Standard)

                  Spec
Properties
Test method
ASTM
GMS0.5 GMS0.75 GMS1.0 GMS1.25 GMS1.5 GMS2.0 GMS2.5
Thickness D5199 0.5mm 0.75mm 1.00mm 1.25mm 1.50mm 2.00mm 2.50mm
Density (≥  g/cc) D1505 0.940 0.940 0.940 0.940 0.940 0.940 0.940
Tensile Properties
(Each direction) (≥)
•   yield strength
•   break strength
•   yield elongation
•   break elongation
D 6693
Type IV


8 kN/m
14kN/m
12%
700%


11 kN/m
20kN/m
12%
700%


15 kN/m
27 kN/m
12%
700%


18 kN/m
33 kN/m
12%
700%


22 kN/m
40 kN/m
12%
700%


29 kN/m
53 kN/m
12%
700%


37kN/m
67kN/m
12%
700%
Tear Resistance (≥) D 1004 64 N 93 N 125 N 156 N 187 N 249 N 311 N
Puncture Resistance (≥) D 4833 160 N 240 N 320 N 400 N 480 N 640 N 800 N
Stress Crack Resistance (≥) D 5397 500 hr. 500 hr. 500 hr. 500 hr. 500 hr. 500 hr. 500 hr.
Carbon Black Content D 1603 2.0-3.0% 2.0-3.0% 2.0-3.0% 2.0-3.0% 2.0-3.0% 2.0-3.0% 2.0-3.0%
Carbon Black Dispersion D 5596 Note(1) Note(1) Note(1) Note(1) Note(1) Note(1) Note(1)
Oxidative Induction Time (OIT) (≥)
(a)Standard OIT
- or -
(b)High Pressure OIT


D 3895

D 5885


100 min.

400 min.


100 min.

400 min.


100 min.

400 min.


100 min.

400 min.


100 min.

400 min.


100 min.

400 min.


100 min.

400 min.


HDPE Geomembrane Application:

Environmental protection, sanitation (such as domestic waste landfill, sewage treatment, toxic and hazardous materials disposal site, dangerous goods warehouse, industrial waste, construction and explosive waste, etc.)
Water conservancy (such as seepage prevention, plugging, reinforcement, anti-seepage of canals, vertical core walls, slope protection, etc.)
Municipal works (metro, underground construction and roof storage tanks, seepage prevention of roof gardens, lining of sewage pipes, etc.)
Garden (artificial lake, pond, pond lining of golf course, slope protection, etc.)
Petrochemical (chemical plant, refinery, oil storage tank anti-seepage, chemical reaction tank, lining of sedimentation tank, secondary lining, etc.)
Mining (washing tanks, heap leaching tanks, ash yards, dissolution tanks, sedimentation tanks, storage yards, tailings tanks, anti-seepage, etc.)
Agriculture (reservoir, drinking water pool, storage pond, anti-seepage of irrigation system)
Aquaculture (fish ponds, lining of shrimp ponds, sea cucumber ring slope protection, etc.)
Salt industry (salt field crystallization tank, brine pool lid, salt film, salt pond plastic film)

0.5mm 0.75mm 1.0mm 1.5mm 2.0mm 3.0mm 4.0mm 5.0mm GM13 ASTM HDPE Geomembrane Fish Shirmp Pond Dam Landfill Liner Price Manufacturer
