High Qualiy The World's First 6.5-meter-wide Polypropylene Filament Geotextile Non Woven with Hydropower Engineering

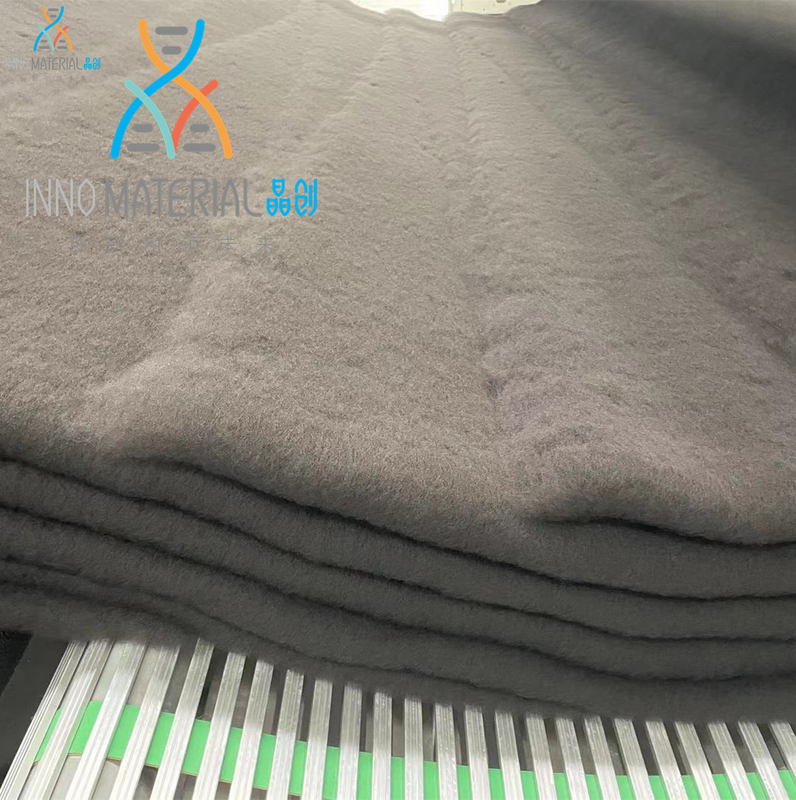

Our nonwoven geotextiles are mechanically bonded continuous filament nonwovens made from 100% UV stabilized polypropylene. They have been used for decades as separation, protection and filtration elements in a large number of applications, adding years to the life of any roadway, railroad, landfill or civil / environmental engineering project. They are robust and long lasting. The manufacturing method (a continuous process with endless filaments) guarantees the use of high-quality raw materials.

TenCate nonwovens are resistant to all chemical and biological media usually occuring in soils and construction materials. It cannot be dissolved by water and therefore is harmless to ground water. They are equipped with a UV-stabilizer, providing extended resistance to direct sunlight.

Availability:
Quantity:
  • 100g-1500g

  • INNO

  • 5602100000

  • white,black,green.grey

  • 1-6m

  • 50-300m

  • INNO

Product Advantage

1. Isolation
The use of geotextile different physical properties (particle size, distribution, density and thickness, etc.) materials (such as soil and sand and gravel soil, soil and concrete, etc.) for isolation. So that two or more materials are not loss of inter-and non hybrid,to maintain the overall structure of the material and functions of the structures is to strengthen the load bearing capacity.
2 .Filter
When the water from fine materials into the soil layers of rough material, the use of acupuncture geogextile good air and water permeability, so that the water flow through, and effective interception soil particles, spinning, the small stone so as to maintain the stability of the soil and water projects.
3 Drainage
Acupuncture geotextile is a good hydraulic material, which can from a soil internal drainage channel, soil structure and excess liquid gasemissions.
4 Reinforced
Acupuncture use of geotextile to enhance soil and the tensile strength of the antideformation ability to increase the stability of the building structure in order to improve the quality of the soil.
5 Protection
Will focus on effective stress-proliferation, transfer or broken down by external force to prevent the soil and damage.
6. Closed
Acupuncture geotextile and other materials (primarily asphalt or plastic film) with the formation of impermeable layer of insulation layer. (Mainly used for road resurfacing and repairing, etc.)

1655858899453

Product Application

O Airport runway, apron crack proof and isolation;
O The roadbed of expressway and highway strengthened and crack proof of the road;
O Isolation and reinforce for the port and wharf;
O Isolation and filtration for Sponge City and underground pipelines;
Isolation, filtration and anti-seepage for sewage treatment plant, landfill plant, pollutant storage tank, environmental protection and water structure;
O Reinforce, isolation, filtration and safeguard for the foundation of petroleum and chemistry warehouse;
O Reinforce, isolation, filtration and safeguard for farmland irrigation and water conservancy, watercourse, reservoir and channel, and for the project of farmland reclamation from the sea;
O Isolation for coal fly ash yard;
O Isolation, reinforcement and filtration for mine TIPS and heap leaching;
O Ecological slope protection and greening maintenance.

1663748174331


Technical data


Specification

Values

Weight (g/m2)

100

150

200

250

300

350

400

450

500

600

800

Weight variation (%)

±4%

Thickness (mm)

1.2

1.6

1.8

2.1

2.6

  3.0

3.3

3.7

4.0

4.5

6.0

Width (m)

1 to 6.5m (5.9m for container transportation)

Width deviation (%)

±0.5%

Breaking Strength (≥KN)

6

11

15

19

22

25

28

31

34

40

50

Elongation at Break (%)

50% to 90%

CBR Bursting Strength (≥KN/m)

1.0

1.7

2.5

3.0

3.5

3.9

4.3

4.8

5.3

6.2

7.8

Sieve Size (mm)

0.07 to 0.3

Vertical Permeability Coefficient (cm/s)

1.0*(10-0 to 10-2)

Tear Strength (≥KN)

0.21

0.31

0.40

0.50

0.58

0.67

0.75

0.80

0.85

1.0

1.30


Packages and Shipment

Nonwoven Geotextile is packed in the woven bags or follow your demand.
Keep it away from moisture and fire!!!
